What Is an SMD LED? Types, Features, and Applications Explained

A Surface-Mounted Device Light Emitting Diode (SMD LED) is a type of LED that is mounted directly onto the surface of a printed circuit board (PCB). Unlike traditional through-hole LEDs, which have wire leads inserted into holes on a circuit board, SMD LEDs are soldered flat against the surface, making them more compact and versatile. This design allows for higher density placement, improved heat dissipation, and better overall performance.

SMD LEDs are widely used in industries such as electronics, automotive lighting, signage, and consumer electronics due to their small size, high brightness, and energy efficiency.

Types of SMD LEDs

1. SMD 2835

   • One of the most common and cost-effective SMD LEDs.

   • Known for high brightness and low power consumption.

   • Often used in LED strips, downlights, and panel lights.

2. SMD 3528

   • Slightly larger than 2835, offering good brightness levels.

   • Common in decorative lighting, displays, and backlit panels.

3. SMD 5050

   • Features three separate diodes in one housing, enabling RGB color mixing.

   • Popular in full-color LED displays, stage lighting, and decorative effects.

4. SMD 5630 / 5730

   • High-intensity SMD LEDs with excellent lumen output.

   • Common in high-brightness applications like floodlights, streetlights, and commercial lighting.

5. SMD 3535

   • Used in high-power applications and outdoor LED displays.

   • Known for high brightness and durability in harsh environments.

Key Features of SMD LED

• Compact Design: Allows for high-density LED arrangements.

• High Brightness: Delivers strong light output with low power usage.

• Energy Efficiency: Consumes significantly less electricity than traditional bulbs.

• Color Variety: Available in single colors or RGB for full-color lighting.

• Heat Management: Designed to dissipate heat efficiently for longer lifespan.

• Versatility: Suitable for flexible PCBs, rigid boards, and various product designs.

Applications of SMD LED

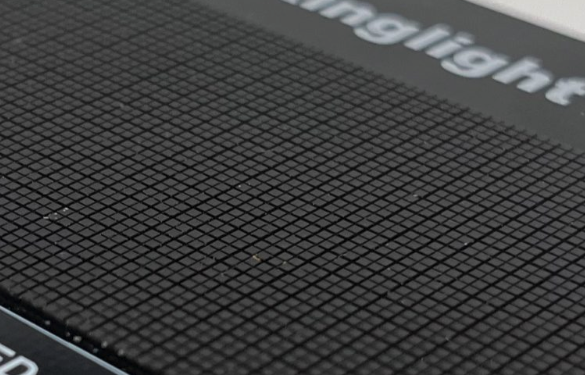

1. LED Displays & Billboards

   • SMD LEDs are the backbone of modern LED screens, offering high resolution, vibrant colors, and wide viewing angles.

2. Lighting Fixtures

   • Used in LED bulbs, ceiling lights, strip lights, and panel lights for both residential and commercial spaces.

3. Automotive Lighting

   • Applied in car headlights, tail lights, and interior lighting due to their durability and brightness.

4. Electronic Devices

   • Backlighting for TVs, monitors, smartphones, and digital signage.

5. Stage & Decorative Lighting

   • RGB SMD LEDs are widely used for colorful stage effects, event decorations, and architectural lighting.

Conclusion

The SMD LED has revolutionized the lighting and display industries with its compact size, efficiency, and versatility. From large-scale outdoor displays to sleek indoor lighting solutions, SMD LEDs provide reliable, high-quality illumination. As technology advances, we can expect even more efficient, brighter, and longer-lasting SMD LED innovations in the future.
